Figure 1: Argo hook lifecycle

Argo CD hooks extend GitOps workflows by enabling pre-flight checks, database migrations, post-deployment tests, and notifications, creating robust automated pipelines for complex deployments.

The Power of GitOps and Argo CD

GitOps, which uses Git as a single source of truth for declarative infrastructure and applications, has transformed the way teams manage deployments. Argo CD automates this by synchronizing the desired state (from a Git repository) with the actual state in a Kubernetes cluster. However, real-world deployments often require more than just applying YAML files; they may involve tasks like database migrations, testing, or notifications. This is where Argo CD hooks come into play, offering a flexible way to extend deployment processes with custom logic.

Understanding Argo CD Hooks

Hooks in Argo CD are special Kubernetes resources that execute at specific points during the synchronization process, enabling you to inject custom behavior. We’ll focus on the two most commonly used hooks: Pre-Sync and Post-Sync.

Figure 2: Argo PreSync and Sync Hooks

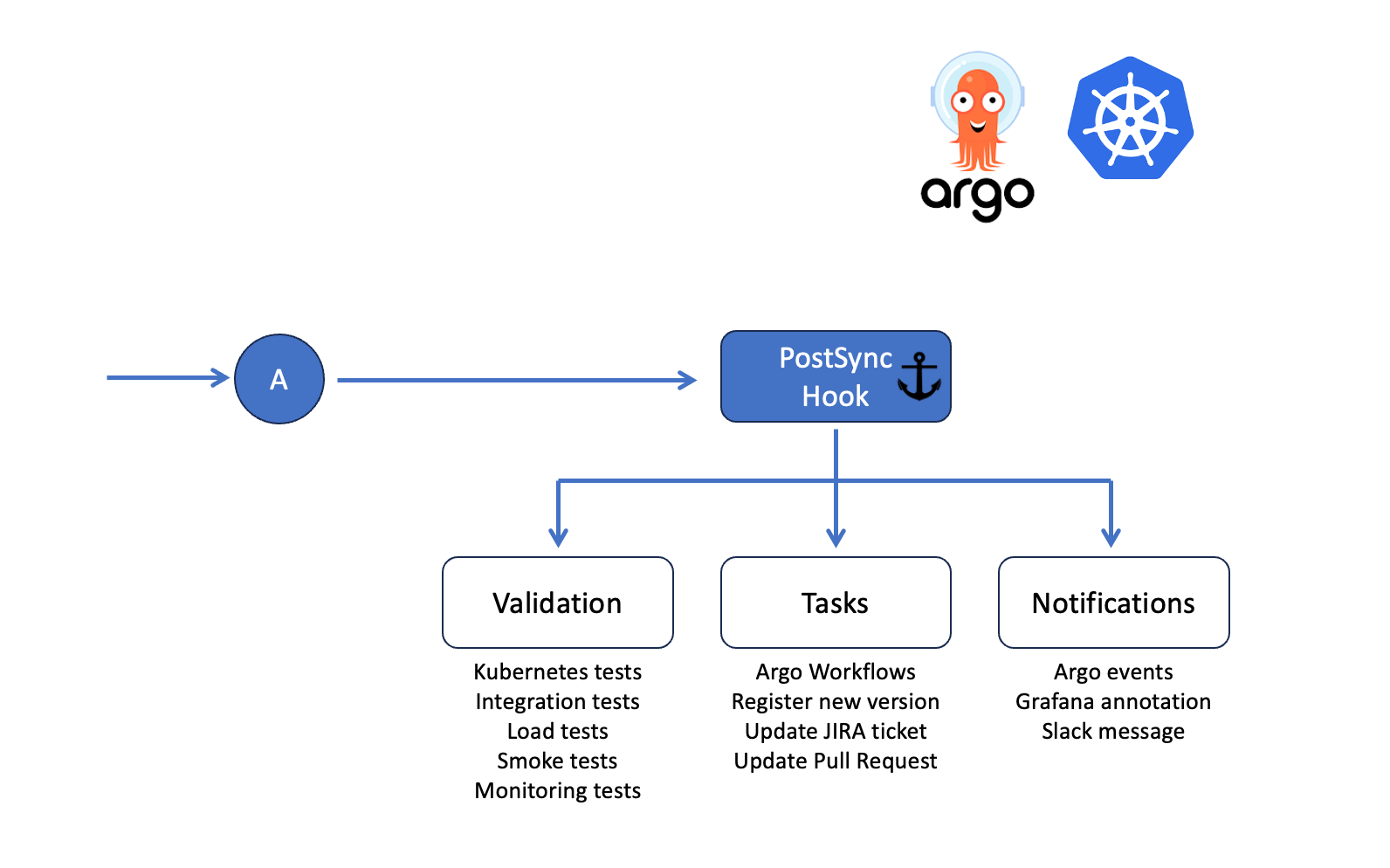

Figure 3: Argo PostSync Hook

The Lifecycle of a Sync Operation

A typical Argo CD sync operation follows this lifecycle:

1. Pre-Sync Phase: Argo CD identifies and executes all pre-sync hooks.
2. Sync Phase: Applies the main application resources to the cluster
3. Post-Sync Phase: Executes post-sync hooks after successful synchronization.

Now, we can delve deeper into the key hook types.

Pre-Sync hooks: Setting the Stage

Pre-sync hooks are executed before the main sync operation begins. They’re ideal for tasks that must be completed before your application is updated or deployed. Use cases include:

1. Database Schema Migrations: Make sure your database is ready for new application code.
2. Resource Dependencies: Configure or wait for resources your application depends on, a more robust alternative to Argo CD Syncwaves for deploying Cluster Add-ons.
3. Backup Operations: Take data or configuration snapshots.
4. Validation and Checks: Perform pre-flight checks, such as querying Prometheus for ongoing production issues.
5. Feature Flag Updates: Adjust configurations or feature flags.

Example: pre-deployment check:

apiVersion: batch/v1

kind: Job

metadata:

name: pre-sync-healthcheck

annotations:

argocd.argoproj.io/hook: PreSync

spec:

template:

spec:

containers:

- name: healthcheck

image: python-prom

command: ["python", "checkprometheus.py"]

restartPolicy: Never

backoffLimit: 2

This job runs a Python script to check service health and ongoing SRE incidents in Prometheus before deployment. If the check fails, the sync is aborted to prevent a broken deployment.

Post-Sync Hooks: Ensuring Success

Post-sync hooks run after the main sync operation and are useful for tasks such as:

1. Integration Testing: Run tests to verify the newly deployed version.
2. Smoke Testing: Ensure critical functionality, like checking Prometheus metrics, is working.
3. Deployment Notifications: Notify teams of successful deployments.
4. Cache Warming: Optimize caches for the new version.

Example: A post-sync integration test:

apiVersion: batch/v1

kind: Job

metadata:

name: post-sync-integration-test

annotations:

argocd.argoproj.io/hook: PostSync

spec:

template:

spec:

containers:

- name: integration-test

image: our-test-runner:v1.0

command: ["npm", "run", "integration-tests"]

restartPolicy: Never

backoffLimit: 0

This job runs integration tests after deployment, ensuring any issues are flagged in Argo CD UI, alerting of potential issues with the deployment.

Advanced Hook Concepts

While pre-sync and post-sync hooks are powerful, Argo CD provides additional features to refine hook behavior.

Using Helm Hooks with Argo CD

Argo CD supports Helm hooks by mapping Helm annotations to Argo CD hooks. This allows you to manage resource orchestration in Helm while leveraging Argo CD’s GitOps benefits. Checkout the Argo CD documentation for Helm hook support https://argo-cd.readthedocs.io/en/stable/user-guide/helm/#helm-hooks

Hook Deletion Policies

You can control the lifecycle of hooks using the argocd.argoproj.io/hook-delete-policy annotation:

• HookSucceeded: Deletes the hook after success.
• HookFailed: Deletes after failure.

Best Practices for Using Hooks

1. Keep It Light: Hooks should be quick and lightweight.
2. Idempotency: Design hooks to be idempotent, ensuring they can be safely re-run.
3. Error Handling: Implement robust error handling to troubleshoot failures.
4. Logging and Monitoring: Ensure hooks log useful information for audits and debugging.
5. Security: Limit access to sensitive resources and follow the principle of least privilege.
6. Version Control: Keep hook definitions in version control.
7. Testing: Test hooks thoroughly to avoid deployment blockages.

Integrating with Argo Workflows

For complex operations beyond the capabilities of hooks, Argo Workflows can be used. Argo Workflows is a Kubernetes-native workflow engine that supports intricate pre-sync processes involving multiple dependent tasks.

Example: A simple workflow for a pre-sync operation:

apiVersion: argoproj.io/v1alpha1

kind: Workflow

metadata:

generateName: presync-

annotations:

argocd.argoproj.io/hook: PreSync

spec:

entrypoint: main

templates:

- name: main

dag:

tasks:

- name: task-1

template: echo

arguments:

parameters: [{name: message, value: task-1}]

- name: task-2

template: echo

arguments:

parameters: [{name: message, value: task-2}]

dependencies: [task-1]

- name: echo

container:

image: busybox

command: [echo, "{{inputs.parameters.message}}"]

inputs:

parameters:

- name: message

This workflow defines a series of dependent tasks that can run before a sync operation.

Conclusion

GitOps automates more than just deployments, it creates a reliable, transparent process for managing infrastructure and applications. Simplify with purpose, ensuring each component in your deployment process step adds value.

Use Argo CD hooks, Argo Workflows, or both to build pipelines that reflect your team’s best practices and adapt to changing needs. Mastering these tools advances you toward resilient, automated DevOps As GitOps evolves, stay curious, experiment, and push boundaries.
