If you think of the shift to microservices and containers as an evolution rather than a revolution then you’ve reached the right place! In this post, we’ll take a pragmatic approach to the realm of Kubernetes-based applications and talk through the phases code goes through as it’s being rolled out to production.

The State of Software Quality Today

First, let’s try to understand what changed and why the basics of code quality need to be revisited.

Just recently, we wrapped up the OverOps annual State of Software Quality survey with over 600 responses from software engineers all over the world. Our goal this year was to find out how today’s engineering teams are addressing the speed vs. quality dilemma.

The good news is that the majority of survey participants (70%) indicated that quality is paramount and that they would prioritize it over speed when faced with this trade-off. Unfortunately, a similar percentage of respondents are spending a day per week or more troubleshooting code-related issues and over 50% of them experience customer impacting issues at least once a month.

And while this survey was focused more broadly on the realities and challenges of delivering reliable software – 45% of respondents said that they’re adopting containers in one way or another. There’s no doubt that containerized microservices and k8s are great for delivering software at scale, BUT they also bring in new challenges that need to be addressed by taking a more structured approach to quality. Challenges such as:

  • Managing the transition from a monolithic application to microservices.
  • Orchestrating deployments across multiple services.
  • Writing and running effective tests.
  • Dealing with polyglot programming across microservices. Logging across microservices.
  • And tracing transactions through the system.

To learn more about these challenges and others, check out OverOps CTO’s recent post on The New Stack.

Phase 1: Build & Testing

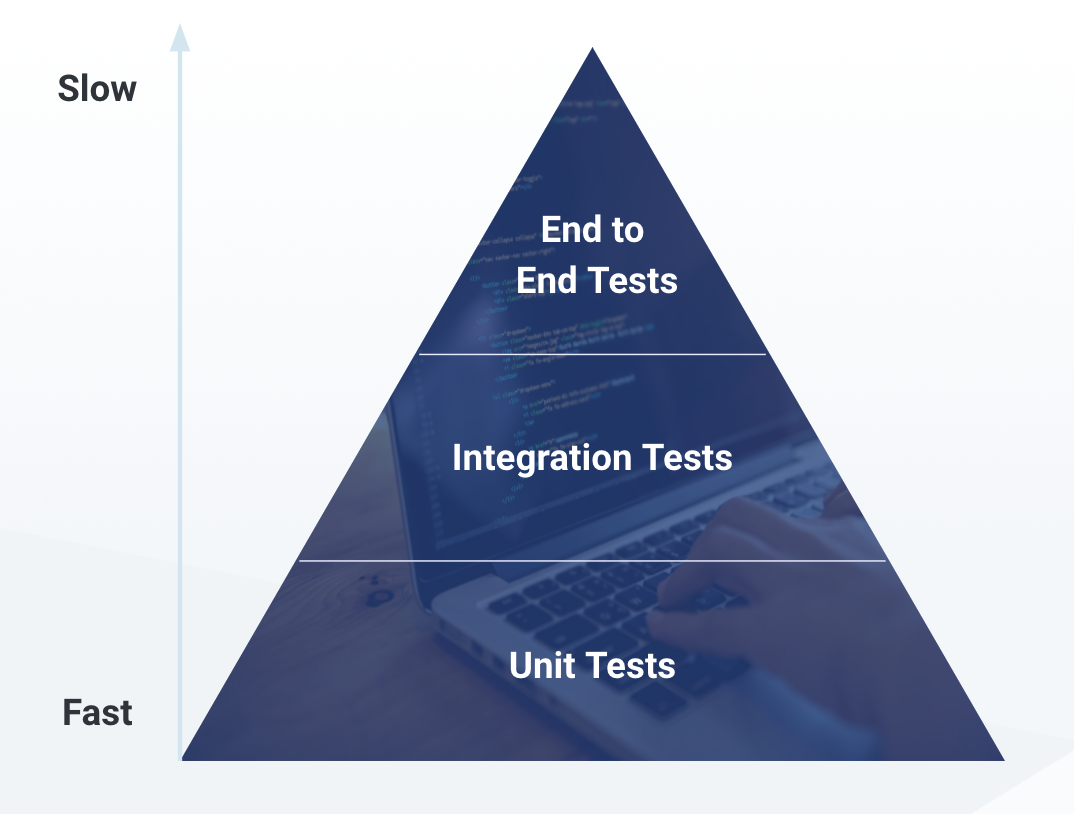

To kick this off, we thought it would make sense to start from the basics. A quick recap of Mike Cohn’s test pyramid:

Near the bottom, we have Unit Tests which are pretty quick and “cheap” to run resource-wise but they’re also very granular, covering smaller components of your application. As we rise up in the pyramid, we’re getting into Integration Tests and End-to-End Testing which require more resources, yet cover larger areas in the application and possibly multiple microservices with more complex transactions. And that’s really the trade-off we need to think of as we get into the first phase of building & testing – how to make sure that we’re making the best use of our time to and driving the most impact?

The first thing you’ll want to look at if you’re not doing this already is incorporating a static analysis solution as part of your pipeline. As the name suggests, Static Analysis means that your code will be scanned and analyzed against a database of common bugs and security issues. While it relies on the same input that goes into your IDEs compiler, static analysis is more sophisticated and takes into account issues that compilers don’t necessarily look for. To learn more about Static Analysis (and how it compares with Dynamic Analysis), check out this blog post by Karthik Lalithraj.

As you saw on the testing pyramid, Unit Tests are pretty quick to run, since they focus on a smaller piece of code like a single class or a few methods within a class. There are a lot of people who recommend achieving at least 80% or 90% test coverage on all of your code, but that’s not always the right thing to do. Just because you tested a bunch of getters and setters to increase your code coverage, doesn’t mean that you did good unit testing and so make sure that you’re testing the right thing at the right place.

Integration and End-to-end testing tests fit at the top of the testing pyramid, covering bigger parts of the application but take up more resources both in terms of coming up with the tests and running them.

Phase 2: Staging / User Acceptance Testing (UAT)

The goal of your staging environment is to replicate production as closely as possible, so that when you execute your performance and scale tests you can be confident that it will behave as if your new release is running in production. Focusing on backend applications, there are many different flavors of performance tests that you can run, some of these include:

  • Load testing. Handling expected user loads, identifying where there may be potential performance bottlenecks.
  • Stress testing. Handling extreme workloads, identifying your application’s “breaking point” is in terms of scale.
  • Endurance testing. Handling load over a long period of time. It may perform well in the beginning but after running for some period of time you may have a performance degradation.
  • Spike testing. Handling a large spike of user load in an instant. Volume testing. Determining if your application performs well depending on how full your database is.
  • Scalability testing. Determining your applications ability to effectively scale up to support an increased user load. Helping you effectively plan for capacity additions to your system.
  • Chaos engineering. Helping build confidence in the system’s capability to withstand turbulent and unexpected conditions.

Depending on your specific application and the types of issues it typically runs into, investing in at least a few types of tests from this list can make a lot of sense.

After all of that and based on the results – you’ll have to make a go-no-go decision. This is where you need to think about your risk tolerance again and define what you consider a critical issue.

But be careful – gathering excessive metrics and looking at too many dashboards quickly turns to a problem of its own. There’s a delicate balance between information overload and effective prioritization that engineering teams need to learn and relearn as they run through this exercise.

In addition, you’ll need to set up the basis for your rollback strategy, reverting a misinformed ‘go’ decision. What happens when you identify an issue that requires a rollback? What types of issues require a rollback and which issues can wait for the next release? Answering these questions will help lay the foundation for this strategy and it’s always better to answer these questions BEFORE going to production.

Phase 3: Production

One of the advantages of Kubernetes is that you can have multiple teams working on different modules in your application. Those modules can be developed and deployed separately and on their own schedule or developed and deployed together, and there are multiple ways to address potential problems in this process to prevent customer impacting issues.

The default approach for Kubernetes is to do a rolling update which means that pods are incrementally updated with the new code until the rollout is complete.

Another approach is using canary deployments as a progressive delivery mechanism. Releasing an update to a small subset of users before introducing it to everyone. Some common strategies are to release these features to a random subset, a demographic subset, or possibly internal users only. While canary deployments can be done entirely inside of Kubernetes, it’s much easier to implement them with a service mesh solution like Istio that can regulate the routing. CI/CD solutions like Spinnaker offer similar canary functionality as well.

Most importantly – we want to make sure that all the data about the behavior of our application is easily accessible to developers. Whether that’s in testing, staging or production, the takeaway is that there needs to be a structured approach in place to ensure code quality and reliability.
